Dalam melakukan aktivitas pekerjaan earthwork, baik di industri konstruksi, pertambangan, perminyakan, dan industri lainnya, sebagai seorang engineer, kita harus mengetahui berbagai macam tipe alat berat dan spesifikasi dari alat tersebut. Berikut ini merupakan berbagai macam unit alat berat dan spesifkasinya

1. DUMP TRUCK

Merupakan truk yang digunakan untuk mengangkut material lepas (loose material) baik berupa pasir, gravel/kerikil, tanah, dan material mineral/batubara yang digunakan di dunia konstruksi dan pertambangan. Dump truck memiliki berbagai macam tipe dan spesifikasi. Nama dari tipe dan spesifikasi yang beredar tergantung dari merk/perusahaan yang mengeluarkan tipe tersebut. Berikut ini merupakan spesifikasi teknis dari berbagai macam tipe dump truck yang ada.

Nissan CWA 260 Series

2. HAUL TRUCK

Haul Truck merupakan salah satu jenis dump truck, namun hanya digunakan untuk mengangkut barang tambang dan quarries di dunia pertambangan. Unit alat berat ini pun tergolong memiliki spesifikasi muatan dan dimensi yang besar. Haul truck memiliki rigid body dan kemudi stir di samping. Perusahaan manufaktur haul truck yang besar di dunia adalah Hitachi, Komatsu, Caterpilar, DAC, Terex, dan Belaz.

Mechanical Dump Truck

HD 465-7

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar HD 465

Spesifikasi teknis HD 465-7

Empty weight	95,020 lb	43100 kg
Max. gross vehicle weight:
Standard tire (Not to exceed max. gross vehicle weight, including options, fuel and payload)	219,760 lb	99680 kg
Weight distribution:
Empty:
Front axle		47%
Rear axles		53%
Loaded:
Front axle		32%
Rear axles		68%

HD 785-7

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar HD 785-7

Berikut ini merupakan spesifikasi teknis HD 785-7

Empty weight	158,800 lb	72000 kg
Max. gross vehicle weight	366,000 lb	166000 kg
Not to exceed max. gross vehicle weight, including options, fuel and payload.
Weight distribution (Empty):
Front axle		47%
Rear axle		53%
Weight distribution (Loaded):
Front axle		31.5%
Rear axle		68.5%

HD 1500-7

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar HD 1500-7

Berikut ini merupakan spesifikasi teknis HD 1500-7

Empty weight	232,144 lb	105300 kg
Max. gross vehicle weight	550,000 lb	249478 kg
Not to exceed max. gross vehicle weight, including options, fuel and payload. Empty weight is with 100% fuel and operator.
Weight distribution:
Empty:
Front axle		48.6%
Rear axle		51.4%
Loaded:
Front axle		32.8%
Rear axle		67.2%

Model	Specs	Engine	Flywheel HP	Maximum Gross Vehicle Weight (lb)	Capacity (ton)	Capacity (cu. yd.)	Maximum Travel (mph)	Inquire
HD325-7	Specs	KOMATSU SAA6D140E-5	498	152,740	40	31.4	43.5	Inquire
HD405-7	Specs	KOMATSU SAA6D140E-5	498	165,520	45.2	35.7	43.5	Inquire
HD465-7	Specs	Komatsu SAA6D170E-5	715	219,760	61	44.7	43.5	Inquire
HD605-7	Specs	Komatsu SAA6D170E-3	715	242,290	69.4	52.3	43.5	Inquire
HD785-7	Specs	Komatsu SAA12V140E-3	1,178	366,000	100.3	78.5	40.4	Inquire
HD1500-7	Specs	Komatsu SDA12V160	1406	550,000	150-164	102.0	36.0	Inquire

Perbandingan Spesifikasi Mechanic Dump Truck Komatsu

Electrical Dump Truck

HD 730E-8

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar HD 730E-8

Make and model*		Komatsu SSDA16V159E-2
Fuel		Diesel
Number of cylinders		16
Operating cycle		4 cycle
Gross horsepower** @ 1900 rpm	2,000 HP	1492 kW
Net flywheel power*** @ 1900 rpm	1,884 HP	1405 kW
* Optional Tier 4 emission compliant engine for North American market. Non-emissionized engine for markets outside of North America.
** Gross horsepower is the output of the engine as installed in this machine, at governed rpm and with engine manufacturer’s approved fuel setting. Accessory losses included are water pump, fuel pump and oil pump.
*** Net flywheel power is the rated power at the engine flywheel minus the average accessory losses. Accessories include fan and charging alternator. Rating(s) represent net engine performance in accordance with SAE J1349 conditions.

HD 860E-1K

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar HD 860E-1K

Berikut ini merupakan spesifikasi teknis HD 860E-1K

Make and model		Komatsu SSDA16V160 Tier 2
Fuel		Diesel
Number of cylinders		16
Operating cycle		4 cycle
Gross horsepower* @ 1900 rpm	2,700 HP	2014 kW
Net flywheel power** @ 1900 rpm	2,550 HP	1902 kW
Weight (wet)	21,182 lb	9608 kg
* Gross horsepower is the output of the engine as installed in this machine, at governed rpm and with engine manufacturer’s approved fuel setting. Accessory losses included are water pump, fuel pump and oil pump.
**Net flywheel power is the rated power at the engine flywheel minus the average accessory losses. Accessories include fan and charging alternator. Rating(s) represent net engine performance in accordance with SAE J1349 conditions.

HD 960E-2K

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar HD 960E-2K

Berikut ini merupakan spesifikasi teknis HD 960E-2K

Make and model*		Komatsu SSDA18V170
Fuel		Diesel
Number of cylinders		18
Operating cycle		4 cycle
Gross horsepower** @ 1900 rpm	3,500 HP	2610 kW
Net flywheel power*** @ 1900 rpm	3,346 HP	2495 kW
Weight (wet)	25,897 lb	11750 kg
Weight (dry)	24,795 lb	11250 kg
* Optional Tier 4 emission compliant engine for North American market. Non-emissionized engine for markets outside of North America.
** Gross horsepower is the output of the engine as installed in this machine, at governed rpm and with engine manufacturer’s approved fuel setting. Accessory losses included are water pump, fuel pump and oil pump.
***Net flywheel power is the rated power at the engine flywheel minus the average accessory losses. Accessories include fan and charging alternator. Rating(s) represent net engine performance in accordance with SAE J1349 conditions.

Model	Specs	Engine	Flywheel HP	Maximum Gross Vehicle Weight (lb)	Capacity (ton)	Capacity (cu. yd.)	Maximum Travel (mph)	Inquire
730E	Specs	Komatsu SSA16V159	1860	715,000	195-205	145.0	34.6	Inquire
830E-AC	Specs	Komatsu SDA16V160	2,360	850,650	240-255	193.0	40	Inquire
930E-4	Specs	Komatsu SSDA16V160	2,550	1,106,670	320-330	276.0	40.0	Inquire
960E-1	Specs	Komatsu SSDA18V170	3,346	1,270,000	360	280	40.0	Inquire
930E-4SE	Specs	Komatsu SSDA18V170	3,429	1,115,000	-	276.0	40.0	Inquire

Perbandingan Spesifikasi Electric Dump Truck Komatsu

Mining Truck

CAT 785 C

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar CAT 785 C

Berikut ini merupakan spesifikasi teknis CAT 785 C

ENGINE

Engine Model	Cat® 3512B-EUI
Gross Power – SAE J1995	1082.0 kW
Net Power – Cat	1005.0 kW
Net Power – ISO 9249	1005.0 kW
Net Power – 80/1269/EEC	1005.0 kW
Torque Rise	23.0 %
Bore	170.0 mm
Stroke	190.0 mm
Displacement	51.8 L
Net Power	1005.0 kW
Net Power – SAE J1349	1005.0 kW
Rated Power	1,750 rpm

WEIGHTS – APPROXIMATE

Chassis Weight	74450.0 kg
Operating Weight – Empty – Dual-slope Body	95725.0 kg
Gross Machine Operating Weight	249480.0 kg
Operating Weight – Empty – Flat Floor Body	102150.0 kg

OPERATING SPECIFICATIONS

Nominal Payload Capacity	136.0 tonnes
Top Speed – Loaded	55.0 km/h
Steer Angle	36.0 Degrees
Raise Time	15.2 Seconds
Lower Time	15.9 Seconds
Machine Clearance Turning Diameter	30.6 m
Maximum Capacity	Custom
Maximum Capacity Struck (SAE)	Custom
SAE (2:1) Capacity	78.0 m3
Turning Diameter – Front	27.5 m

CAT 793 D

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar CAT 793D

Berikut ini merupakan spesifikasi teknis dari CAT 793 D

ENGINE

Engine Model	Cat 3516B HD EUI
Gross Power – SAE J1995	1801.0 kW
Rated Power	1801.0 kW
Net Power – ISO 9249	1743.0 kW
Net Power – 80/1269/EEC	1743.0 kW
Torque Rise	23.0 %
Bore	170.0 mm
Stroke	215.0 mm
Displacement	78.0 L
Net Power	1743.0 kW
Net Power – SAE J1349	1743.0 kW

WEIGHTS – APPROXIMATE

Gross Machine Operating Weight (GMW)	383749.0 kg
Chassis Weight	116707.0 kg
Body Weight Range	21 795 – 54 431 kg / 48,050 – 120,000 lb

OPERATING SPECIFICATIONS

Nominal Payload Capacity	218.0 tonnes
Body Capacity (SAE 2:1)	129.0 m3
Top Speed – Loaded	54.3 km/h
Maximum Payload Capacity	218.0 tonnes
Maximum Payload Capacity	Custom
Steer Angle	36.0 Degrees
Raise Time	20.3 Seconds
Lower Time	17.5 Seconds
Turning Circle Clearance Diameter	32.66 m
Turning Diameter – Front	28.42 m

CAT 797F

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar CAT 797F

Berikut ini merupakan tabel spesifikasi teknis Caterpillar 797

Caterpillar 797 Series Specifications
SPECIFICATION	797	797B	797F
Public Introduction	1999	2002	2008
Nominal Payload Capacity	360 short tons (327 t)	380 short tons (345 t)	400 short tons (363 t)
Gross Machine Operating Weight	1,230,000 lb (557,900 kg)	1,375,000 lb (623,700 kg)	1,375,000 lb (623,700 kg)
Engine Make & Model	Cat 3524B High Displacement EUI	Cat 3524B High Displacement EUI	Cat C175-20 ACERT
Engine Arrangement	V-12 x 2	V-12 x 2	V-20
Engine Power	3,211 hp (2,394 kW) net	3,370 hp (2,513 kW) net (SAE J1349)	3,793 hp (2,828 kW) net (SAE J1349)
Top Speed (Loaded)	40 mph (64 km/h)	42 mph (68 km/h)	42 mph (68 km/h)
Overall Height to Top of ROPS (Empty)	23 ft 8 in (7.21 m)	24 ft 11 in (7.59 m)	21 ft 5 in (6.53 m)
Overall Height (Body Raised)	49 ft 3 in (15.01 m)	50 ft 2 in (15.29 m)	51 ft 6 in (15.70 m)
Overall Length	47 ft 7 in (14.50 m)	47 ft 5 in (14.45 m)	49 ft 6 in (15.09 m)
Overall Tire Width (loaded)	30 ft 0 in (9.14 m)	32 ft 0 in (9.75 m)	31 ft 3 in (9.53 m)
Fuel Capacity	1,000 US gal (3,785 l)	1,800 US gal (6,814 l)	1,000 US gal (3,785 l)

OFF HIGHWAY TRUCK

CAT 770G

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar CAT 770 G

Berikut ini merupakan spesifikasi teknis CAT 770 G

ENGINE

Engine Model	Cat® C15 ACERT™
Rated Engine Speed	1700.0 RPM
Gross Power – SAE J1995	384.0 kW
Net Power – SAE J1349	356.0 kW
Net Power – 80/1269/EEC	365.0 kW
Net Power – ISO 9249	356.0 kW
Number of Cylinders	6
Bore	137.0 mm
Stroke	171.0 mm
Displacement	15.2 L
Net Power – ISO 14396	379.0 kW
Net Torque – SAE J1349	2486.0 N·m

WEIGHTS – APPROXIMATE

Target Gross Machine Operating Weight	71214.0 kg
Chassis Weight	25378.0 kg
Body Weight	7665.0 kg
Target Gross Machine Weight	71214.0 kg

OPERATING SPECIFICATIONS

Nominal Payload Class (100%)	38.2 tonnes
Top Speed – Loaded	73.7 km/h
Body Capacity (SAE 2:1)	25.2 m3
Maximum Payload Class (110%)	42.0 tonnes
Not to Exceed Payload (120%)	50.4 tonnes
Target Payload Capacity	38.2 tonnes

CAT 773G

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

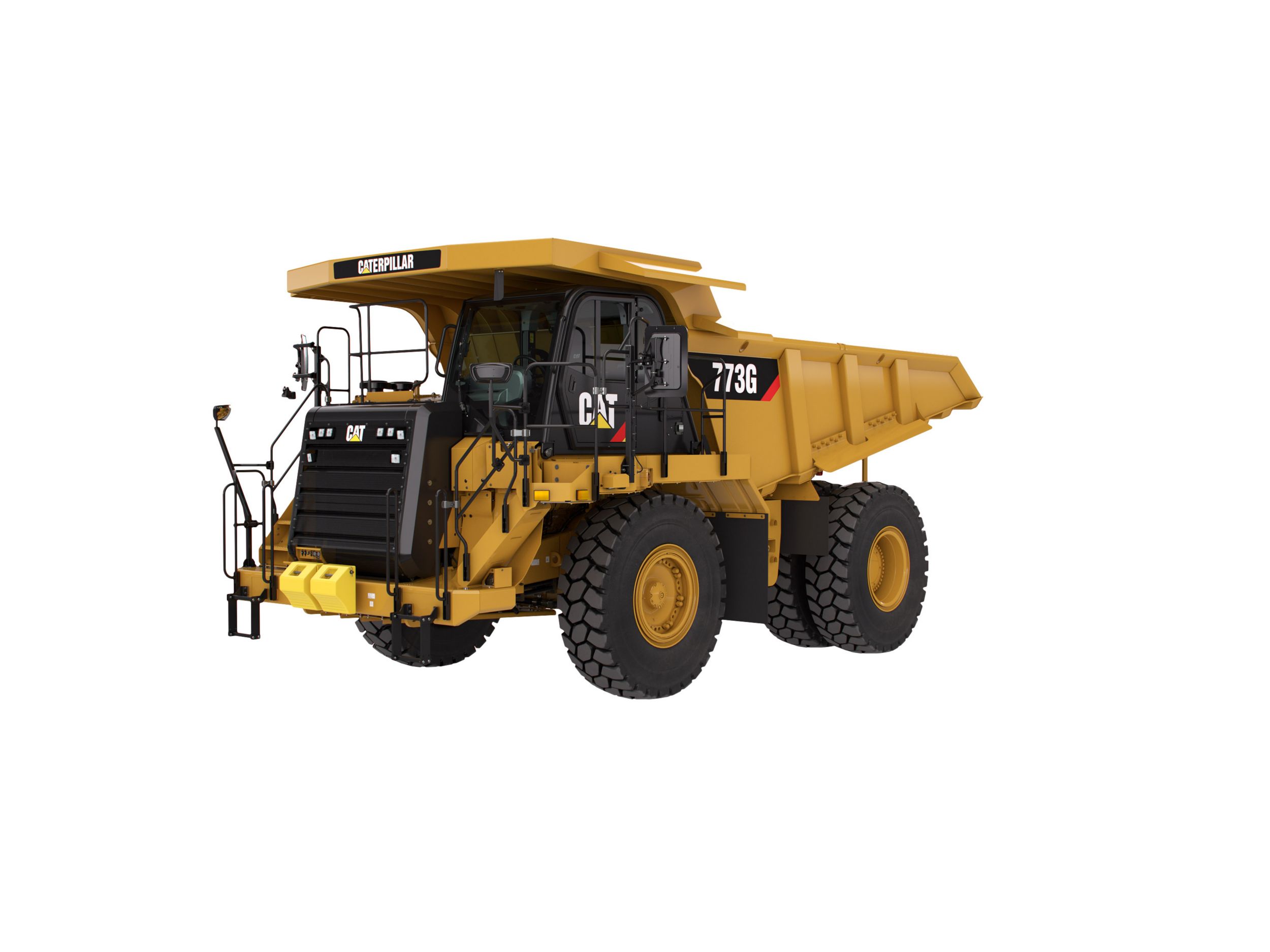

Gambar CAT 773G

Berikut ini merupakan spesifikasi CAT 773G

ENGINE

Engine Model	Cat® C27 ACERT™
Rated Engine Speed	1800.0 RPM
Gross Power – SAE J1995	578.0 kW
Net Power – SAE J1349	534.0 kW
Net Power – 80/1269/EEC	540.0 kW
Net Power – ISO 9249	540.0 kW
Bore	137.0 mm
Stroke	152.0 mm
Displacement	27.0 L
Engine Power – ISO 14396	568.0 kW
Net Torque	3992.0 N·m
Peak Torque Speed	1200.0 RPM

WEIGHTS – APPROXIMATE

Maximum Gross Vehicle Weight

102740.0 kg

OPERATING SPECIFICATIONS

Nominal Payload Class (100%)	55.3 tonnes
Top Speed – Loaded	66.9 km/h
Body Capacity – SAE 2:1	35.75 m3
Maximum Working Payload (110%)	60.8 tonnes
Not to Exceed Payload (120%)*	66.3 tonnes

CAT 777G

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar CAT 777G

Berikut ini merupakan spesifikasi teknis CAT 777G

ENGINE

Engine Model	Cat® C32 ACERT™
Gross Power – SAE J1995	765.0 kW
Net Power – SAE J1349	683.0 kW
Net Power – 80/1269/EEC	683.0 kW
Net Power – ISO 9249	683.0 kW
Bore	145.0 mm
Stroke	162.0 mm
Displacement	32.1 L
Cylinders	12
Engine Power – ISO 14396	752.0 kW
Engine Speed	1800.0 RPM
Net Torque	5286.0 N·m
Peak Torque Speed	1200.0 RPM

WEIGHTS – APPROXIMATE

Target Gross Machine Weight

164654.0 kg

OPERATING SPECIFICATIONS

Nominal Payload Class (100%)	89.4 tonnes
Top Speed – Loaded	67.1 km/h
Body Capacity – SAE 2:1	64.1 m3
Maximum Payload (110%)	98.3 tonnes
Nominal Payload (100%)	89.4 tonnes
Not to Exceed Payload (120%)*	107.2 tonnes

Model	Net Power		Capacity		Top Speed
Model	hp	kW	ton	m/ton	mph	km/h
770	476	355	40	36.4	46.5	74.8
772	535	399	50	45	49.5	79.7
773D	671	501	60	54.4	41.1	67.5
775F	740	552	70	63.5	41.9	67.5
777F	938	700	100	90.9	40.1	64.5
785C	1,348	1005	150	136.0	34.0	54.8
789C	1,771	1320	195	177.0	32.7	52.6
793D	2,337	1743	240	218.0	33.7	54.3
797B	3,370	2513	380	345.0	42.0	67.6

Perbandingan Spesifikasi Hauler Truck Caterpillar

Bucyrus MT630AC

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Berikut ini merupakan spesifikasi teknis Bucyrus MT6300 AC

Bucyrus MT6300AC Specifications^[7]
SPECIFICATION
Public Introduction	2008
Nominal Payload Capacity	400 short tons (363 t)
Gross Machine Operating Weight	1,330,000 lb (603,300 kg)
Engine Make & Model	MTU/DDC 20V4000
Engine Arrangement	V-20
Engine Power	3,750 hp (2,796 kW) net
Top Speed (Loaded)	40 mph (64 km/h)
Overall Height to Top of Canopy (Empty)	26 ft 0 in (7.92 m)
Overall Height (Body Raised)	44 ft 4 in (13.51 m)
Overall Length	51 ft 1 in (15.57 m)
Overall Width	31 ft 10 in (9.70 m)
Fuel Capacity	1,300 US gal (4,921 l)
Tire Size	59/80R63

LIEBHERR T 264

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Liebherr T 264

Berikut ini merupakan spesifikasi teknis Liebherr T 264

Gross vehicle weight (GVW)	393 t / 433 ton
Payload	228 t / 251 ton
Empty vehicle weight (EVW)	165 t / 182 tons
Max. travel speed	64 km/h / 40 mph
Drive System	Litronic Plus AC drive system

LIEBHERR T 284

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Liebherr T 284

Berikut ini merupakan spesifikasi teknis Liebherr T 284

Gross vehicle weight (GVW)	600 t / 661 ton
Payload	363 t / 400 ton
Empty vehicle weight (EVW)	237 t / 261 ton
Drive System	Litronic Plus AC drive system

Hitachi EH-600

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Rigid Dump Truck Hitachi EH-600

Berikut ini merupakan spesifikasi teknis Hitachi EH-600

Model Code	EH600
Engine	Cummins N14-C400 Rated Power 298 kW (400 HP)
Maximum GMW	56 900 kg (125 000 lb)
Nominal Payload with Standard Equipment	30.1 tonnes (33.2 tons)

Hitachi EH-1100

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Rigid Dump Truck Hitachi EH-1100

Berikut ini merupakan spesifikasi teknis Hitachi EH-1100

Model Code	EH1100-3
Engine	MTU Detroit Diesel 12 V Series 2000 Rated Power 567 kW (760 HP)
Target Gross Machine Operating Weight	104 541 kg
Nominal Payload with Standard Equipment	60.3 tonnes (66.4 tons)

Hitachi EH-3500ACII

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Rigid Dump Truck Hitachi EH3500ACII

Berikut ini merupakan spesifikasi teknis Hitachi EH3500ACII

Model Code	EH3500ACII
Target Gross Machine Operating Weight	309 000 kg
Engine	Cummins QSKTA50-CE Rated Power 1 491 kW (2 000 HP)
Nominal Payload with Standard Equipment	168 tonnes (185 tons)

Hitachi EH-5000AC

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Hitachi EH-5000AC-3

Berikut ini merupakan spesifikasi teknis Hitachi EH-5000AC

Model Code	EH5000AC-3
Nominal Payload with Standard Equipment	296 tonnes (326 tons)
Target Gross Machine Operating Weight	500 000 kg
Engine	Cummins QSKTTA60-CE Rated Power 2 125 kW (2 850 HP)

MODEL LINEUP
Model	Target GMOW (kg)	Engine Rated Power (kW)	Nominal Payload with Standard Equipment (tonnes)
EH600	56900	298	30.1
EH1100-3	104541	567	60.3
EH1700-3	163300	783	95.2
EH3500ACII	309000	1491	168
EH4000ACII	384000	1864	222
EH4500-2	480362	2014	254
EH5000AC-3	500000	2125	296

Perbandingan Spesifikasi Teknis Produk HD / Rigid Dump Truck Hitachi

3. ARTICULATED HAULER TRUCK

Articulated Hauler (biasa disebut dengan artic) merupakan jenis all-wheel drive, memiliki bagian terpisah antara kabin dan dump box. Perusahaan manufaktur articulated hauler yang besar di dunia adalah Volvo, Terex, John Deere, dan Caterpilar.

HM 300-3

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Articulated Truck HM 300-3

Berikut ini merupakan spesifikasi teknis HM 300-3

Empty weight	54,917 lbs	24,910 kg
Gross vehicle weight	116,823 lbs	52,990 kg
Weight distribution:
Empty:
Front axle		57.0%
Center axle		23.0%
Rear axles		20.0%
Loaded:
Front axle		29.0%
Center axle		36.5%
Rear axles		34.5%

HM 400-3

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Articulated Truck : Komatsu HM400-3

Berikut ini merupakan spesifikasi teknis Articulated Truck Komatsu HM 400-3

Empty weight	74,207 lbs	33,660 kg
Gross vehicle weight	162,569 lbs	73,740 kg
Weight distribution:
Empty:
Front axle		56.4%
Center axle		22.5%
Rear axles		21.1%
Loaded:
Front axle		29.4%
Center axle		35.4%
Rear axles		35.2%

Model	Specs	Engine	Flywheel HP	Maximum Gross Vehicle Weight (lb)	Capacity (ton)	Capacity (cu. yd.)	Maximum Travel (mph)	Inquire
HM300-2	Specs	Komatsu SAA6D125E-5	329	113,360 lb	30.1	21.7	36.4	Inquire
HM350-2	Specs	Komatsu SAA6D140E-5	394	139,900	35.6	25.9	35.5	Inquire
HM400-2	Specs	Komatsu SAA6D140E-5	438	152,200	40	29.2	36.4	Inquire

Perbandingan Spesifikasi Articulated Hauler Komatsu

CAT 730 C

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Berikut ini merupakan spesifikasi Articulated Hauler CAT 730 C

ENGINE

Engine Model	Cat C13
Gross Power – SAE J1995	280.0 kW
Net Power – SAE J1349	274.0 kW
Bore	130.0 mm
Stroke	157.0 mm
Displacement	12.5 L
Engine Model – U.S. EPA Tier 4 Final/EU Stage IV	Cat® C13 ACERT™
Net Power – ISO 14396	276.0 kW
No Engine De-rating Required Below	3810.0 m
Peak Engine Torque Gross (SAE J1995)	2141.0 N·m
Peak Engine Torque Net (ISO 14396)	2120.0 N·m
Peak Engine Torque Speed	1200.0 RPM

WEIGHTS

Rated Payload

28.0 tonnes

BODY CAPACITIES

Heaped SAE 2:1	17.5 m3
Struck	13.3 m3
Tailgate Heaped SAE 2:1	18.8 m3
Tailgate Struck	13.9 m3

CAT 740 B

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar CAT 740 B

ENGINE

Engine Model	Cat® C15 ACERT™
Gross Power – SAE J1995	365.0 kW
Net Power – SAE J1349	354.0 kW
Bore	137.0 mm
Stroke	171.5 mm
Displacement	15.2 L
Engine Model Tier 4 Interim/EU Stage IIIB	Cat® C15 ACERT™
Net Power – ISO 14396	361.0 kW

WEIGHTS

Rated Payload

39.5 tonnes

BODY CAPACITIES

Heaped SAE 2:1	24.0 m3
Struck	18.5 m3
Tailgate Heaped SAE 2:1	25.5 m3
Tailgate Struck	19.5 m3

OPERATING WEIGHTS

Front Axle – Empty	20746.0 kg
Center Axle – Empty	7196.0 kg
Rear Axle – Empty	6466.0 kg
Total – Empty	34408.0 kg
Front Axle – Rated Load	5211.0 kg
Center Axle – Rated Load	17186.0 kg
Rear Axle – Rated Load	17186.0 kg
Total – Rated Load	39582.0 kg
Front Axle – Loaded	25956.0 kg
Center Axle – Loaded	24382.0 kg
Rear Axle – Loaded	23652.0 kg
Total – Loaded	73990.0 kg

Model	Net Power		Operating Weight (Empty)		Rated Payload		Body Capacities (Heaped)
Model	hp	kW	lb	kg	tons	tonnes	yd³	m³
725	301	225	49.075	22.260	26	23.6	18,8	14,3
730	317	237	50.379	22.850	31	28,1	22,1	16,9
730 Ejector	317	237	56.328	25.550	31	28,1	22,1	16,9
735	385	287	66.690	25.550	36	32,7	25,8	19,7
740	453	338	72.973	33.100	43,5	39,5	31,4	24,0
740 Ejector	436	325	78.507	35.610	42	38	30,2	23,1

Perbandingan Spesifikasi Articulated Hauler Caterpillar

Bell B40D

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Artic Bell B40D

Berikut ini merupakan spesifikasi teknis dari Articulated Hauler Bell B40D

Model Code	B40D
Engine Net Power	308 kW (413 HP)
Rated Payload	37 000 kg
Operating Weight	66 850 kg
Body Capacity: SAE,PCSA(2:1) Heaped	22.6 m³

Bell B50D

Untuk brosur spesifikasi dari alat berat ini, dapat klik di tulisan kode unit alat berat di atas

Gambar Artic Bell B50D

Berikut ini merupakan spesifikasi teknis Articulated Hauler (Artic) Bell B50D

Model Code	B50D
Engine Net Power	382 kW (512 HP)
Gross Vehicle Weight	79 920 kg
Rated Payload	45 400 kg
Body Capacity: Heaped SAE 2:1	27.5 m³

MODEL LINEUP
Model	Gross Vehicle Weight (kg)	Engine Net Power (kW)	Rated Payload (kg)	Body Capacity Heaped SAE 2:1 (m³)
B40D	66850	308	37000	22.6
B50D	79920	382	45400	27.5

Perbandingan Spesifikasi Produk Articulated Hauler Bell

SITUS RESMI MANUFAKTUR ALAT BERAT

Bila anda ingin mencari brosur alat berat dari berbagai manufaktur besar, berikut ini merupakan link yang dapat anda gunakan untuk mencari brosur spesifikasi alat berat yang anda cari. Anda bisa mencari brosur spesifikasi excavator/PC/Hitachi, Dozer, Wheel Loader, Motor Grader, Dump Truck, Articulated Hauler, Haul Truck, dan berbagai macam alat berat lainnya.

Produk Caterpillar : http://www.cat.com/en_US/products/new/equipment.html

Produk Komatsu : http://www.komatsuamerica.com/

Produk Liebherr : http://www.liebherr.com/ME/en-GB/default_me.wfw/measure-nonMetric

Produk Hitachi : http://www.hexindo-tbk.co.id/products/index.html

Produk Volvo Truck : http://www.volvotrucks.com/trucks/indonesia-market/en-id/trucks/Pages/productGuide.aspx

Produk Hino Truck : http://www.hino.com/trucks/
